PLM之家-NX9.0 二次开发实例视频-24 创建自定义基准CSYS
7 }1 q$ s/ R8 v9 V0 U, v7 [$ A4 }; i1 J+ X C
# l, L2 o) x6 s: A+ W" I
内容：; x H5 P; j) g0 p
创建自定义基准CSYS控件使用，熟悉使用CSYS控件，熟悉使用NX Open C++进行对象的颜色修改。2 m4 Y d) U# {, c0 r7 |
目的：: P4 c' I/ j: q0 N9 h7 Q9 C; M
使用CSYS控件可以获得一个基准坐标，对应基准坐标需要使用坐标创建才能得到，要想对基准坐标进行颜色的修改，需要对基准的所有自对象进行修改。5 k) F/ @2 O5 a' H3 S* B: Z
$ h, @# P6 w: q
2 j+ E- i! c O) A
7 U& v: t7 e/ M j

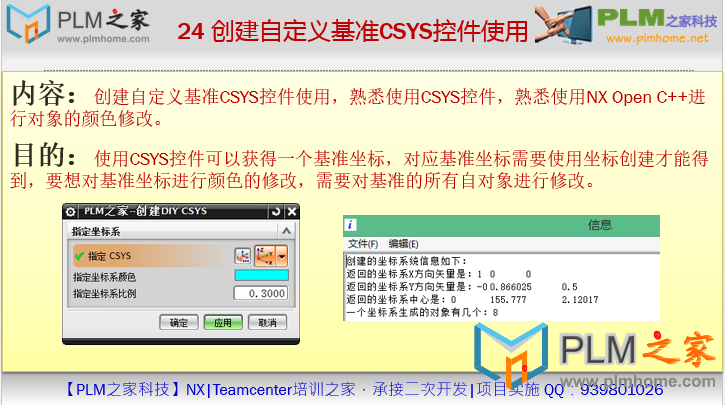

24 创建自定义基准CSYS
% O) g) f1 k) H7 Z. c
% O: |+ p6 l* v c6 ]: G, W, g
% U" c% Y5 u% ^& o: ?
, m# g+ B+ P* T r& G7 o- try! P7 m ^8 c8 h+ a! n4 \
- {
! K% S4 b4 x9 x3 a - //---- Enter your callback code here -----
" Q4 }8 l+ a6 w, i' ^5 q - ! U/ a/ v% l, ^& U4 B/ G8 I5 R }
- NXOpen::ListingWindow *lw = theSession->ListingWindow();
4 m' e- n+ c" X; G - stringstream ss;
# {: l; d y- M6 I4 j - NXOpen::Vector3d xdir,ydir;2 ^+ s2 b) V3 p. i9 i; e" \0 N/ N
- NXOpen::Point3d originPoint;
! F/ ?' F& I* l7 N - lw->Open();
0 M+ s* ^/ Y- {+ G' s2 C& P+ e9 ^5 I - ss << ("创建的坐标系统信息如下：\n");& }2 \, q: A5 Q+ Z1 w
- std::vector<NXOpen::TaggedObject *> coordObjects = this->coord_system0->GetProperties()->GetTaggedObjectVector("SelectedObjects");$ _2 i6 A9 J; N) u( S
- NXOpen::CartesianCoordinateSystem *coord = dynamic_cast<NXOpen::CartesianCoordinateSystem *>(coordObjects[0]);# Z3 u8 @" C" f0 `0 b* u
- coord->GetDirections(&xdir,&ydir);8 L1 W* X' `0 h" o
- ss<<"返回的坐标系X方向矢量是："<<xdir.X<<"\t"<<xdir.Y<<"\t"<<xdir.Z<<endl;' v2 `/ ^6 }* Y
- ss<<"返回的坐标系Y方向矢量是："<<ydir.X<<"\t"<<ydir.Y<<"\t"<<ydir.Z<<endl;
& H; ^+ F. Y: K+ L8 j7 x0 d - originPoint = coord->Origin();: u: G# O5 H0 K: n' E$ N% B
- ss<<"返回的坐标系中心是："<<originPoint.X<<"\t"<<originPoint.Y<<"\t"<<originPoint.Z<<endl;
7 \# s: U9 _6 O. V+ l - lw->WriteLine(ss.str());
! C* G) ]$ e% K - // create the csys
7 _7 o* E& X; _; a& L$ d - Part *workpart(theSession->Parts()->Work());
& N% ?/ U9 i: A. |& Z& G" @- R - Features::Feature *null_feature(NULL);7 n' J7 {" J' h6 F. R+ t9 ?
- Features::DatumCsysBuilder *datumCsysBuilder ;" {* L+ z4 |& W" z5 h! A) v
- datumCsysBuilder = workpart->Features()->CreateDatumCsysBuilder(null_feature);# Z7 o c- I: }) L
- datumCsysBuilder->SeTCsys(coord);
6 k7 q" n+ s0 o+ @2 `* S+ v( c& [ - //set the scale factor
9 \. D3 ?" n: k8 R - datumCsysBuilder->SetDisplayScaleFactor(this->double0->GetProperties()->GetDouble("Value"));
& m" L9 p6 T- p8 T! s" {/ F - datumCsysBuilder->Commit();1 L: F! o* [6 N3 s2 G: y1 t( W
- std::vector< NXOpen::NXObject * > GetCommittedObjects;0 [1 D+ U" H" O8 f
- GetCommittedObjects=datumCsysBuilder->GetCommittedObjects();
5 _! _. J' V: n0 a" c4 h" H - datumCsysBuilder->Destroy();% M/ D- q0 y. ?! d, X) Z" l9 [
- // set the color* J/ m; M+ w' G/ m- S n _
- NXOpen::DisplayModification *displayObject;- S; f. ^$ f) k
- displayObject = theSession->DisplayManager()->NewDisplayModification();( x( h7 d- X, V3 }& H" @
- displayObject->SetApplyToAllFaces(true);( v0 G# ?4 ?# n8 T4 \/ I
% f7 n. \& Y( a6 p0 }8 i- // get the color from the UI. {; U+ a' P4 @1 A8 K, J( ?
- std::vector<int> color = this->colorPicker0->GetProperties()->GetIntegerVector("Value");
; m7 w8 s. w/ l8 R - displayObject->SetNewColor(color[0]);* ~& l4 A! S( e; m4 I3 w
& R A8 Z0 D+ u0 |& a3 ?$ Q- std::vector <DisplayableObject *> csysObject;
2 q5 M$ t8 H# {* e5 ~6 V* | P - ss.clear();
6 j. c/ E |1 H2 v9 o - ss.str("");7 b7 G, F$ E9 N3 _8 a6 t$ @
- ss<<"一个坐标系生成的对象有几个："<< GetCommittedObjects.size()<<endl;
' K4 U6 n2 v( v1 } - lw->WriteLine(ss.str());4 c: c1 {3 `3 _; C
- for(unsigned int i = 0 ; i < GetCommittedObjects.size();i ++ )
, Z0 X- y6 ]' g# P5 v+ x& |2 `$ j8 V - {- S9 N7 |) V+ S+ d' u9 o! Y
- csysObject.push_back( dynamic_cast<DisplayableObject *>(GetCommittedObjects[i]));* q* d! Y6 M/ ]
- }
9 s; ?2 X$ X) L- i! r9 B: F4 L$ @ - displayObject->Apply(csysObject);
8 o$ F' [; m5 w' U' z$ K9 v - delete displayObject;
- }1 H2 ~9 v' a" O; f* V, C: _3 j1 \ - }
