NX二次开发源码： 创建草图并通过草图做出回转体

admin

通过NX开发进行草图的创建，创建草图过程包括基本曲线的创建以及约束。
, z, x1 Y( b% n- O7 H5 B草图的约束分为几何约束和尺寸约束，通过代码的约束使得草图完全约束。
草图完成后，可以通过回转体进行旋转，此处直接做出简单的例子。
仅供参考！
- ]& Z' _8 ?2 j, a. {8 I; B

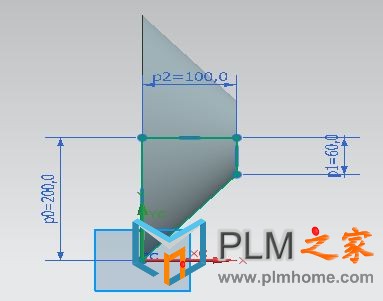

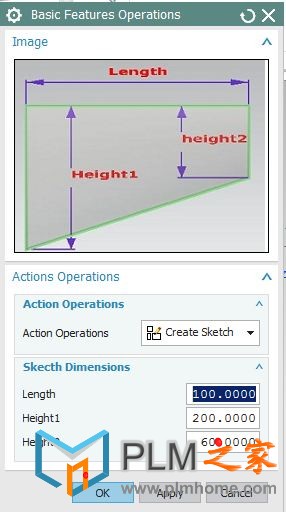

效果如下：
0 ]! P# _2 B5 I4 r5 \& y! [

admin

比较乱，仅供参考

; D3 u& o. Z, X( e" u  k

1. <p>void basicFeatures::createSketch()

2. {</p><p>{
   ) \. O4 T# _5 J
3.     Session *theSession = Session::GetSession();

4.     Part *workPart(theSession->Parts()->Work());

5.     Part *displayPart(theSession->Parts()->Display());
   ; g# B& _! a( ~4 P* w' T8 k
6.     Sketch *nullSketch(NULL);

7.     SketchInPlaceBuilder *sketchInPlaceBuilder1;
   : Q" x+ e  ^0 |( k) o
8.     sketchInPlaceBuilder1 = workPart->Sketches()->CreateNewSketchInPlaceBuilder(nullSketch);
   * ?% V; n# w$ G5 Q
9.     sketchInPlaceBuilder1->Plane()->SetMethod(PlaneTypes::MethodTypeFixedZ);

10.     Point3d origin1(0.0, 0.0, 0.0);
    9 [  a# @1 p  E
11.     sketchInPlaceBuilder1->Plane()->SetOrigin(origin1);

12.     sketchInPlaceBuilder1->Plane()->Evaluate();</p><p> // set the reference</p><p> theSession->Preferences()->Sketch()->SetCreateInferredConstraints(true);
    : ?$ {( H* h( k5 y  f+ M
13.
    . e1 k' a% L4 O7 i) l
14.     theSession->Preferences()->Sketch()->SetContinuousAutoDimensioning(false);
    2 u; P, o6 T' l) V8 W
15.
    : r- _" k9 Y( p9 b$ |
16.     theSession->Preferences()->Sketch()->SetDimensionLabel(Preferences::SketchPreferences::DimensionLabelTypeExpression);

17.
    ; L! {3 T2 q- ^3 Q
18.     theSession->Preferences()->Sketch()->SetTextSizeFixed(true);
    & O! l* \5 V, y4 y0 l
19.
    " ^* P6 @+ E- n1 [
20.     theSession->Preferences()->Sketch()->SetFixedTextSize(3.0);
    % {+ M0 |! q, P3 X) F# O) E8 V
21.

22.     theSession->Preferences()->Sketch()->SetConstraintSymbolSize(3.0);
    6 v# I7 P, }. H0 n) K8 j
23.

24.     theSession->Preferences()->Sketch()->SetDisplayObjectColor(false);
    0 Q, @# b0 w/ _2 y* r
25.
    : _1 i( |! D& K0 Y! L, m) o
26.     theSession->Preferences()->Sketch()->SetDisplayObjectName(true);</p><p>
    & N. u- C# A( j# l/ o
27.     NXObject *nXObject1;

28.     nXObject1 = sketchInPlaceBuilder1->Commit();

29.
    % M7 O* z5 ~0 A9 a' U# S. ~
30.     Sketch *sketch1(dynamic_cast<Sketch *>(nXObject1));

31.     Features::Feature *feature1;
    " b5 R# R, c$ z. r4 X6 w$ _
32.     feature1 = sketch1->Feature();</p><p>
    + ]" e: m" V2 f6 m% M
33.     sketchInPlaceBuilder1->Destroy();</p><p>

34. sketch1->Activate(Sketch::ViewReorientFalse);

35.
    3 ]. _# |/ A( o+ O. R9 t8 k; U$ T
36. // define the dimensions
    : }9 E% \2 _) `2 }9 R! H& H
37.     double heigth1 = this->doubleHeight1->GetProperties()->GetDouble("Value");
    # g3 [) @9 X6 K6 }
38. double heigth2 = this->doubleHeight2->GetProperties()->GetDouble("Value");

39. double length = this->doubleLength->GetProperties()->GetDouble("Value");
    , W: |, t7 w$ [) F. z; a
40. char msg1[UF_MAX_EXP_BUFSIZE],msg2[UF_MAX_EXP_BUFSIZE],msg3[UF_MAX_EXP_BUFSIZE];

41. sprintf(msg1,"%f",heigth1);

42. sprintf(msg2,"%f",heigth2);

43. sprintf(msg3,"%f",length);

44. Expression *height1exp,*height2exp,*lengthexp;

45. height1exp= workPart->Expressions()->CreateSystemExpression(msg1);
    8 b' v4 I( S. M/ h" z& `# ^) D
46. height2exp= workPart->Expressions()->CreateSystemExpression(msg2);

47. lengthexp= workPart->Expressions()->CreateSystemExpression(msg3);
    8 b5 @5 Y) a' T4 m6 t. \% v4 R
48. // these for the dimension position
    " o7 F; t! ^' ]% z: i
49. Point3d dimOrigin1(-100, heigth1/2, 0.0);
    0 e! ]$ K2 M3 h, U  b
50. Point3d dimOrigin2(length/2, heigth1+100, 0.0);
    6 W% h; i" K# O
51. Point3d dimOrigin3(length+100, heigth1-heigth2/2, 0.0);</p><p>  // add curves
    8 x9 f  I2 |' w1 D& Y' V! z* h
52.     Point3d startPoint1(0.0, 0.0, 0.0);

53. Point3d endPoint1(0.0,heigth1,0.0);

54. Point3d endPoint2(length,heigth1,0.0);

55. Point3d endPoint3(length,heigth1-heigth2,0.0);

56.     Line *line1,*line2,*line3,*line4;
    . A: S/ X+ F7 s% p% y
57.     line1 = workPart->Curves()->CreateLine(startPoint1, endPoint1);
    7 Z4 R4 V7 N; D- f7 d
58. line2 = workPart->Curves()->CreateLine(endPoint1, endPoint2);
    . \5 w% U0 _2 ^- v1 d
59. line3 = workPart->Curves()->CreateLine(endPoint2, endPoint3);

60. line4 = workPart->Curves()->CreateLine(endPoint3, startPoint1);
    6 j$ f% n2 H% T0 ~% \
61. theSession->ActiveSketch()->AddGeometry(line1, Sketch::InferConstraintsOptionInferCoincidentConstraints);
    $ T/ q. ?( v7 Z3 P0 |
62. theSession->ActiveSketch()->AddGeometry(line2, Sketch::InferConstraintsOptionInferCoincidentConstraints);

63. theSession->ActiveSketch()->AddGeometry(line3, Sketch::InferConstraintsOptionInferCoincidentConstraints);

64. theSession->ActiveSketch()->AddGeometry(line4, Sketch::InferConstraintsOptionInferCoincidentConstraints);
    $ m7 q+ p" Z7 P6 D+ \
65.    </p><p> // add constraints

66. //..

67. // for line1
    ) m3 |) C( F9 Y3 [
68. Sketch::ConstraintGeometry geopoint1;

69. geopoint1.Geometry = line1;

70. geopoint1.PointType = Sketch::ConstraintPointTypeStartVertex;
    " I4 v8 T( D) B3 T/ W" u1 h, _2 ~9 a
71. geopoint1.SplineDefiningPointIndex = 0;

72. // find the (0,0,0) point

73. Sketch::ConstraintGeometry geopoint2;
    ) ^) C( F, r% e) N
74. Point *pointOriginal;

75. pointOriginal = workPart->Points()->CreatePoint(sketch1->Origin());
    + M5 S3 {% O3 m' o. E! k
76. geopoint2.Geometry = pointOriginal;

77. geopoint2.PointType = Sketch::ConstraintPointTypeStartVertex;

78. geopoint2.SplineDefiningPointIndex = 0;

79. theSession->ActiveSketch()->CreateCoincidentConstraint(geopoint1,geopoint2);</p><p> Sketch::ConstraintGeometry geoline1;

80. geoline1.Geometry = line1;
    : O$ v' R1 a" i  [1 H. N- k; A
81. geoline1.PointType = Sketch::ConstraintPointTypeNone;
    / I1 X) v, ]/ u( ^* N1 U
82. geoline1.SplineDefiningPointIndex = 0;

83. theSession->ActiveSketch()->CreateVerticalConstraint(geoline1);
    3 C0 ~: E/ T- k# [9 p
84. //..
    / B5 @7 g) `' n/ V) E" J5 E
85. // for line2
    0 n; Y3 {" B* }* {& f
86. Sketch::ConstraintGeometry geoline2;

87. geoline2.Geometry = line2;

88. geoline2.PointType = Sketch::ConstraintPointTypeNone;

89. geoline2.SplineDefiningPointIndex = 0;

90. theSession->ActiveSketch()->CreateHorizontalConstraint(geoline2);
    $ [8 L5 k* Z5 C3 L# X
91. //..
    7 f# ?% [3 Q# V9 y, i+ p
92. // for line3

93. Sketch::ConstraintGeometry geoline3;

94. geoline3.Geometry = line3;
    ; m# U# }; P0 m1 i- }$ M: O
95. geoline3.PointType = Sketch::ConstraintPointTypeNone;
    , s) E5 Z% w# I" f3 N
96. geoline3.SplineDefiningPointIndex = 0;
    6 X; d: `' `, D2 [/ A
97. theSession->ActiveSketch()->CreateVerticalConstraint(geoline3);

98. // use this method to create the constraints

99. /*SketchConstraintBuilder *line3constraint;

100. line3constraint= workPart->Sketches()->CreateConstraintBuilder();

101. line3constraint->GeometryToConstrain()->Add(line3);
     6 K* I0 L; `7 Y$ T- {8 B% {
102. line3constraint->SetConstraintType(SketchConstraintBuilder::ConstraintVertical);

103. line3constraint->Commit();

104.     line3constraint->Destroy();*/
     ! z" z# F7 b, z1 D* H! G6 {
105.
     / A; \+ D4 W3 K/ _) @8 U0 s# ~
106. // add dimension
     ' I8 z) w1 Z8 d% j0 K
107. //..

108. // for line1
     % X- ^3 M& Q7 M2 o) l
109. Sketch::DimensionGeometry dimobject1_start;

110. dimobject1_start.AssocType = Sketch::AssocTypeStartPoint;

111. dimobject1_start.AssocValue = 0;
     " G) U. ?7 a, Y: J8 x' i
112. dimobject1_start.Geometry = line1;

113. dimobject1_start.HelpPoint.X = 0 ;

114. dimobject1_start.HelpPoint.Y = 0 ;
     : d" }: n" N% `/ V( A
115. dimobject1_start.HelpPoint.Z = 0 ;

116. NXObject *nullNXObject1(NULL);
     : c, e0 m, j. S) R$ @" [
117. dimobject1_start.View = nullNXObject1;</p><p> Sketch::DimensionGeometry dimobject1_end;

118. dimobject1_end.AssocType = Sketch::AssocTypeEndPoint;

119. dimobject1_end.AssocValue = 0;

120. dimobject1_end.Geometry = line1;

121. dimobject1_end.HelpPoint.X = 0 ;

122. dimobject1_end.HelpPoint.Y = 0 ;
     6 ]- Z: z/ W4 i3 f0 n
123. dimobject1_end.HelpPoint.Z = 0 ;
     $ A! ~1 ^! ]7 R) I1 w
124. dimobject1_end.View = nullNXObject1;</p><p> SketchDimensionalConstraint *sketchDimensionalConstraint1 = theSession->ActiveSketch()->CreateDimension(Sketch::ConstraintTypeVerticalDim,dimobject1_start,dimobject1_end,dimOrigin1,height1exp,Sketch::DimensionOptionCreateAsDriving);</p><p>    Annotations::Dimension *dimension1;

125.     dimension1 = sketchDimensionalConstraint1->AssociatedDimension();</p><p>

126. //..

127. // for line2
     $ Z+ Y: [3 H& n- }
128. Sketch::DimensionGeometry dimobject2_start;

129. dimobject2_start.AssocType = Sketch::AssocTypeStartPoint;
     : t9 P# `" Q( W/ g, J" r  k" x8 z3 ]
130. dimobject2_start.AssocValue = 0;

131. dimobject2_start.Geometry = line2;

132. dimobject2_start.HelpPoint.X = 0 ;

133. dimobject2_start.HelpPoint.Y = 0 ;
     . M3 ~& |$ w" W
134. dimobject2_start.HelpPoint.Z = 0 ;

135. dimobject2_start.View = nullNXObject1;</p><p> Sketch::DimensionGeometry dimobject2_end;

136. dimobject2_end.AssocType = Sketch::AssocTypeEndPoint;

137. dimobject2_end.AssocValue = 0;

138. dimobject2_end.Geometry = line2;

139. dimobject2_end.HelpPoint.X = 0 ;
     , H; S+ I- b( b/ V
140. dimobject2_end.HelpPoint.Y = 0 ;

141. dimobject2_end.HelpPoint.Z = 0 ;
     8 `1 v; i# L) g6 R" ]" H
142. dimobject2_end.View = nullNXObject1;</p><p> SketchDimensionalConstraint *sketchDimensionalConstraint2 = theSession->ActiveSketch()->CreateDimension(Sketch::ConstraintTypeHorizontalDim,dimobject2_start,dimobject2_end,dimOrigin2,lengthexp,Sketch::DimensionOptionCreateAsDriving);</p><p>    Annotations::Dimension *dimension2;

143.     dimension2 = sketchDimensionalConstraint2->AssociatedDimension();</p><p> // for line3
     3 V6 G2 E1 Y& L, @" Z
144. Sketch::DimensionGeometry dimobject3_start;

145. dimobject3_start.AssocType = Sketch::AssocTypeStartPoint;
     3 W$ _. S- W" W5 q2 c, B8 J
146. dimobject3_start.AssocValue = 0;

147. dimobject3_start.Geometry = line3;
     ' T% ~4 q; x) X0 i
148. dimobject3_start.HelpPoint.X = 0 ;
     * i5 ?% y# R8 f8 H, {) h" |
149. dimobject3_start.HelpPoint.Y = 0 ;
     . u  E5 ]% K6 H0 {. s
150. dimobject3_start.HelpPoint.Z = 0 ;

151. dimobject3_start.View = nullNXObject1;</p><p> Sketch::DimensionGeometry dimobject3_end;

152. dimobject3_end.AssocType = Sketch::AssocTypeEndPoint;
     6 J- g2 O& M8 _* x
153. dimobject3_end.AssocValue = 0;

154. dimobject3_end.Geometry = line3;
     8 j" D( b6 U# M" M# O6 V, X
155. dimobject3_end.HelpPoint.X = 0 ;
     6 H# u2 r  s  r* W# ], Y
156. dimobject3_end.HelpPoint.Y = 0 ;

157. dimobject3_end.HelpPoint.Z = 0 ;

158. dimobject3_end.View = nullNXObject1;</p><p> SketchDimensionalConstraint *sketchDimensionalConstraint3 = theSession->ActiveSketch()->CreateDimension(Sketch::ConstraintTypeVerticalDim,dimobject3_start,dimobject3_end,dimOrigin3,height2exp,Sketch::DimensionOptionCreateAsDriving);</p><p>    Annotations::Dimension *dimension3;
     3 D( w. F/ k( c1 N; Q# C, u
159.     dimension3 = sketchDimensionalConstraint3->AssociatedDimension();</p><p> //workPart->Expressions()->Delete(height1exp);</p><p> theSession->ActiveSketch()->Update();</p><p> theSession->ActiveSketch()->Deactivate(Sketch::ViewReorientFalse,Sketch::UpdateLevelModel);
     1 C; O9 M8 X- f" k& d3 E
160.
     # i8 o- n9 l0 |/ e
161. /*</p><p> // revolve the body</p><p> */
     # }9 T3 n5 h  u" U! \2 P! p4 ~+ F
162. Features::Feature *nullFeatures_Feature(NULL);

163. Features::RevolveBuilder *revolveBuilder1;
     - z# _3 j& {& v& v
164.     revolveBuilder1 = workPart->Features()->CreateRevolveBuilder(nullFeatures_Feature);

165.     revolveBuilder1->Limits()->StartExtend()->Value()->SetRightHandSide("0");

166.     revolveBuilder1->Limits()->EndExtend()->Value()->SetRightHandSide("360");

167.     revolveBuilder1->SetTolerance(0.01);
       i/ r; p  W" P) U6 X' b  ~
168. Section *section1;

169.     section1 = workPart->Sections()->CreateSection(0.0095, 0.01, 0.5);

170.     revolveBuilder1->SetSection(section1);

171.
     8 t, f! o/ N  o/ z2 |7 _
172. section1->SetAllowedEntityTypes(Section::AllowTypesOnlyCurves);

173.

174. std::vector<Features::Feature *> features1(1);
     ( M. H% o$ p7 s
175.     features1[0] = feature1;
     . N  ?, `( O/ Z8 j5 v8 c
176.     CurveFeatureRule *curveFeatureRule1;

177.     curveFeatureRule1 = workPart->ScRuleFactory()->CreateRuleCurveFeature(features1);
     0 |; c" d) ?. }# \% p
178.
     - X4 {6 S$ J7 h. W
179.     section1->AllowSelfIntersection(false);
       ]% N+ V1 Q, H5 A0 }
180.
     0 s5 M" L9 V- `" R+ _7 p% y! v
181.     std::vector<SelectionIntentRule *> rules1(1);

182.     rules1[0] = curveFeatureRule1;

183.     NXObject *nullNXObject(NULL);
     : K9 M+ a4 C. `% V& U1 }
184.     Point3d helpPoint1(0.0, 0.0, 0.0);

185.     section1->AddToSection(rules1, nullNXObject, nullNXObject, nullNXObject, helpPoint1, Section::ModeCreate, false);

186.

187. // define the axis</p><p>    Direction *direction1;

188.     direction1 = workPart->Directions()->CreateDirection(line2, SenseForward, SmartObject::UpdateOptionWithinModeling);
     5 n( _  [0 P7 z5 T7 z
189.

190.     Point *nullPoint(NULL);
     . N4 [: E& M) A  |$ L. q
191.     Axis *axis1;
     6 c# {% C. w9 |9 ^6 D
192.     axis1 = workPart->Axes()->CreateAxis(nullPoint, direction1, SmartObject::UpdateOptionWithinModeling);
     # C3 [# x6 Y% g$ e2 V* f5 z
193.
     ) S# _! t9 H- ?5 v1 k4 Q' @
194. revolveBuilder1->SetAxis(axis1);</p><p> // commit feature
     $ J& D' b6 y. K" J8 Z
195. Features::Feature *feature2;
     ) m8 L5 {% z# [0 v
196.     feature2 = revolveBuilder1->CommitFeature();

197. revolveBuilder1->Destroy();
     3 z% _% q! P3 K3 }
198. }</p><p>}
     " b. a8 N# G0 u! i: ]
199. </p><p> </p>
