PLM之家-NX9.0 二次开发实例视频33 NXOpen C++创建旋转特征

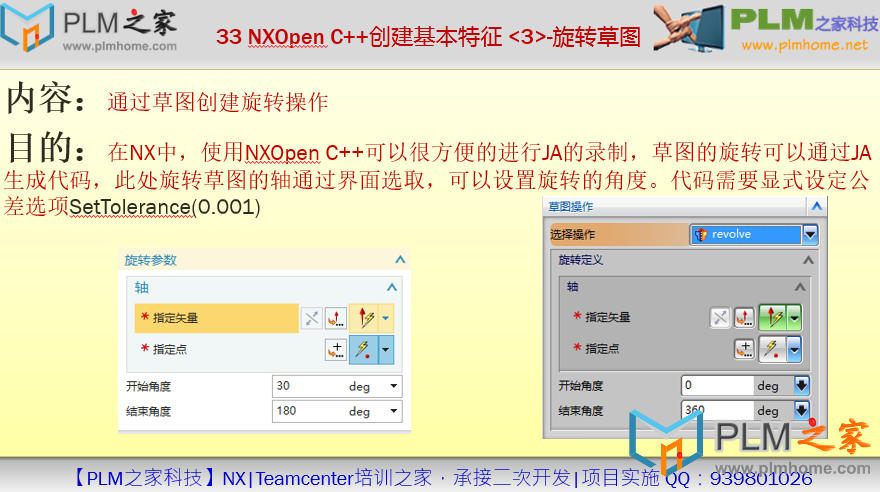

旋转草图

内容：
" V0 \0 T% U) S$ F7 n* G通过草图创建旋转操作
) {: l8 Y; I2 N目的：
( q0 p" C  C9 J: ]在NX中，使用NXOpen C++可以很方便的进行JA的录制，草图的旋转可以通过JA生成代码，此处旋转草图的轴通过界面选取，可以设置旋转的角度。代码需要显式设定公差选项SetTolerance(0.001)

/ g3 U. [4 P8 Z1 {) O' `
PLM之家-NX9.0二次开发实例33 NXOpen C++创建旋转草图(1)创建项目
0 U: @/ `" K9 A3 R  A& w PLM之家-NX9.0二次开发实例33 NXOpen C++创建旋转草图(2)代码分析
( s: K0 K+ h0 ?2 W0 E! X$ n PLM之家-NX9.0二次开发实例33 NXOpen C++创建旋转草图(3)截面代码定义
PLM之家-NX9.0二次开发实例33 NXOpen C++创建旋转草图(4)UI关联
1 t. Q" B  Q: k* o. F' O1 ~' T' C: V
关键代码分享：

void lesson33_createRevolve::createRevolve(SkeTCh *sketch)
9 r- ]& x8 d# M3 f{
- c3 Y3 b) b. }6 ~% C  i Features::Feature *nullFeatures_Feature(NULL);
8 O, ]9 m( P0 G: Z$ |, L' i
% |* U/ n- `& T( d9 _6 \' @9 j    Features::RevolveBuilder *revolveBuilder1;
  c$ n- k5 E" a- J$ {    revolveBuilder1 = workPart->Features()->CreateRevolveBuilder(nullFeatures_Feature);
  n  R3 i$ N4 q6 drevolveBuilder1->SetTolerance(0.001);
    Section *section1;
    section1 = workPart->Sections()->CreateSection(0.00095, 0.001, 0.05);
$ T! t- F7 |  ~* a  C3 K  i0 q    revolveBuilder1->SetSection(section1);
" {8 \( c6 W, u7 {1 j9 S# I    std::vector<Features::Feature *> features1(1);
& M3 j3 h9 l3 ~; d! p9 rfeatures1[0] = sketch->Feature();
9 D# [  z* ]! s    CurveFeatureRule *curveFeatureRule1;
4 e. n0 m/ u# b. I8 J# c7 Z" S    curveFeatureRule1 = workPart->ScRuleFactory()->CreateRuleCurveFeature(features1);
" ^4 B+ s9 x' x' l    std::vector<SelectionIntentRule *> rules1(1);
! i# V9 j' v# S* H0 \7 n4 u    rules1[0] = curveFeatureRule1;
    NXObject *nullNXObject(NULL);
# \( \/ ?& [" `$ s& _" I2 Z! X    Point3d helpPoint1(0, 0, 0);
    section1->AddToSection(rules1, nullNXObject, nullNXObject, nullNXObject, helpPoint1, Section::ModeCreate, false);
    revolveBuilder1->SetSection(section1);
// get UI value
vector<TaggedObject*> selectedObjects = this->axis0->GetProperties()->GetTaggedObjectVector("SelectedObjects");
Axis *axis1 = dynamic_cast<Axis *>(selectedObjects[0]);
revolveBuilder1->SetAxis(axis1);
double startValue = this->expStartAngle->GetProperties()->GetDouble("Value");
double endValue = this->expStartAngle1->GetProperties()->GetDouble("Value");
0 ^7 x& Q$ m( ?0 _8 G: q* h3 Z8 Z2 T stringstream s_startValue,s_endValue;
+ S" k# W+ p5 m s_startValue <<startValue;
s_endValue <<endValue;
revolveBuilder1->Limits()->StartExtend()->Value()->SetRightHandSide(s_startValue.str());
) o! O: X. d8 P4 J revolveBuilder1->Limits()->EndExtend()->Value()->SetRightHandSide(s_endValue.str());
2 l: Q+ r* U2 |+ O    Features::Feature *feature1;
) M5 s; ?3 Y% y% o2 [    feature1 = revolveBuilder1->CommitFeature();
revolveBuilder1->Destroy();
" I0 K3 D- _& k7 a& P: R" Y+ P/ esection1->Destroy();
8 i  c. w$ j( U( t}
