【PLM之家UG网-NX8.5自定义特征UDF视频专题】1自定义特征概述

admin

【PLM之家UG网-NX8.5自定义特征UDF视频专题】1自定义特征UDF概述
- i# H$ [7 N5 _
* F. @* I' u* J. @. _$ l0 \8 j- u+ E
; k2 |) g# `4 ~/ F

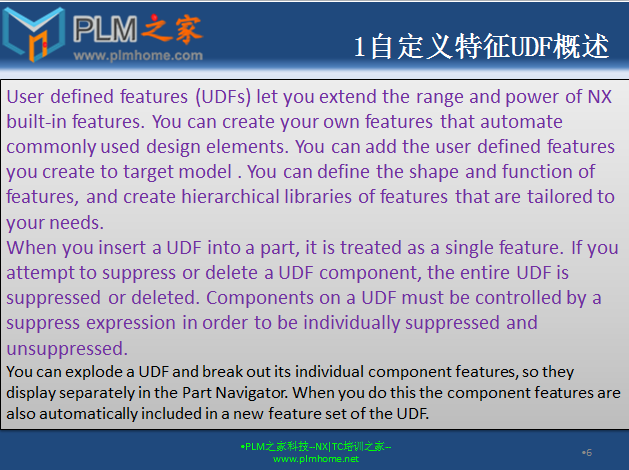

1自定义特征UDF概述

User defined features (UDFs) let you extend the range and power of NX built-in features. You can create your own features that automate commonly used design elements. You can add the user defined features you create to target model . You can define the shape and function of features, and create hierarchical libraries of features that are tailored to your needs.
- m9 I$ Z5 f+ Y. G2 |/ Q2 Y4 yWhen you insert a UDF into a part, it is treated as a single feature. If you attempt to suppress or delete a UDF component, the entire UDF is suppressed or deleted. Components on a UDF must be controlled by a suppress expression in order to be individually suppressed and unsuppressed.
& W& }& z) A+ N- GYou can explode a UDF and break out its individual component features, so they display separately in the Part Navigator. When you do this the component features are also automatically included in a new feature set of the UDF.

$ p% G7 r9 i/ l1 l& t, L6 l! f6 c
. ~- G* W: I8 r+ H4 b7 G/ o
